Newpixel Plus

VIDEO CONFERENCING SOLUTIONS

VIDEO CONFERENCING SOLUTIONS

Step into the future of seamless communication with Newpixel Plus Video Conferencing Solutions, featuring state-of-the-art components such as a high-quality 360-degree microphone and 4K resolution webcams. Designed to transcend the limitations of conventional virtual meetings, Newpixel Plus solution ensures crystal-clear audio and video for an immersive conferencing experience. The 360-degree microphone captures every nuance of conversation, creating a natural and dynamic exchange. Paired with 4K webcams, these solutions bring meetings to life with unparalleled clarity, making every interaction as if you’re in the same room. Trust Newpixel Plus to elevate your virtual collaboration with cutting-edge technology, setting a new standard for video conferencing excellence.

Camera

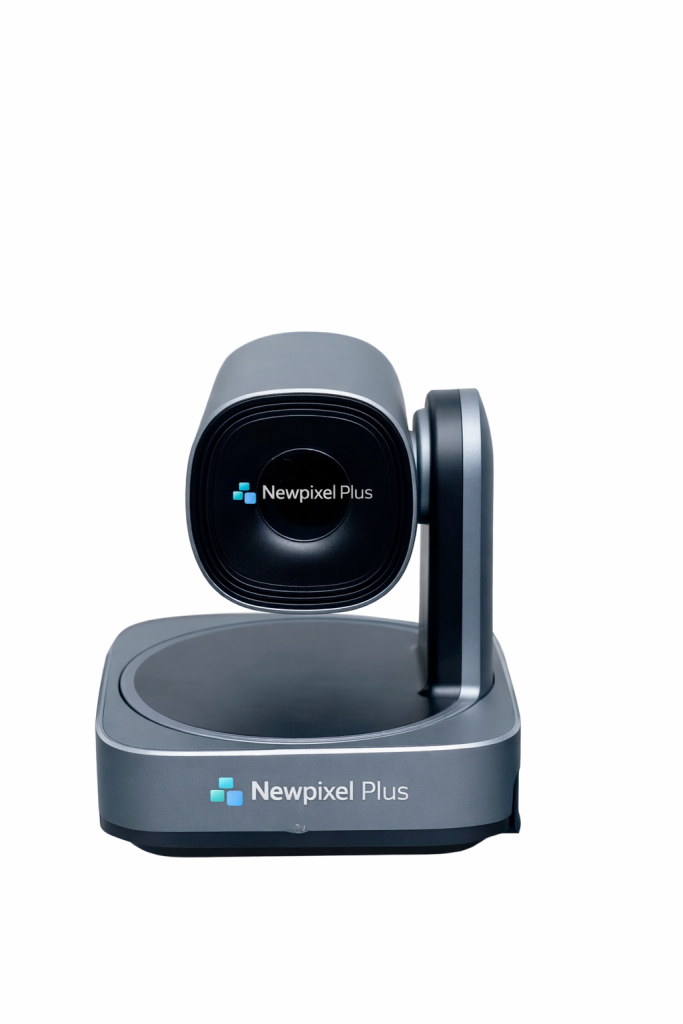

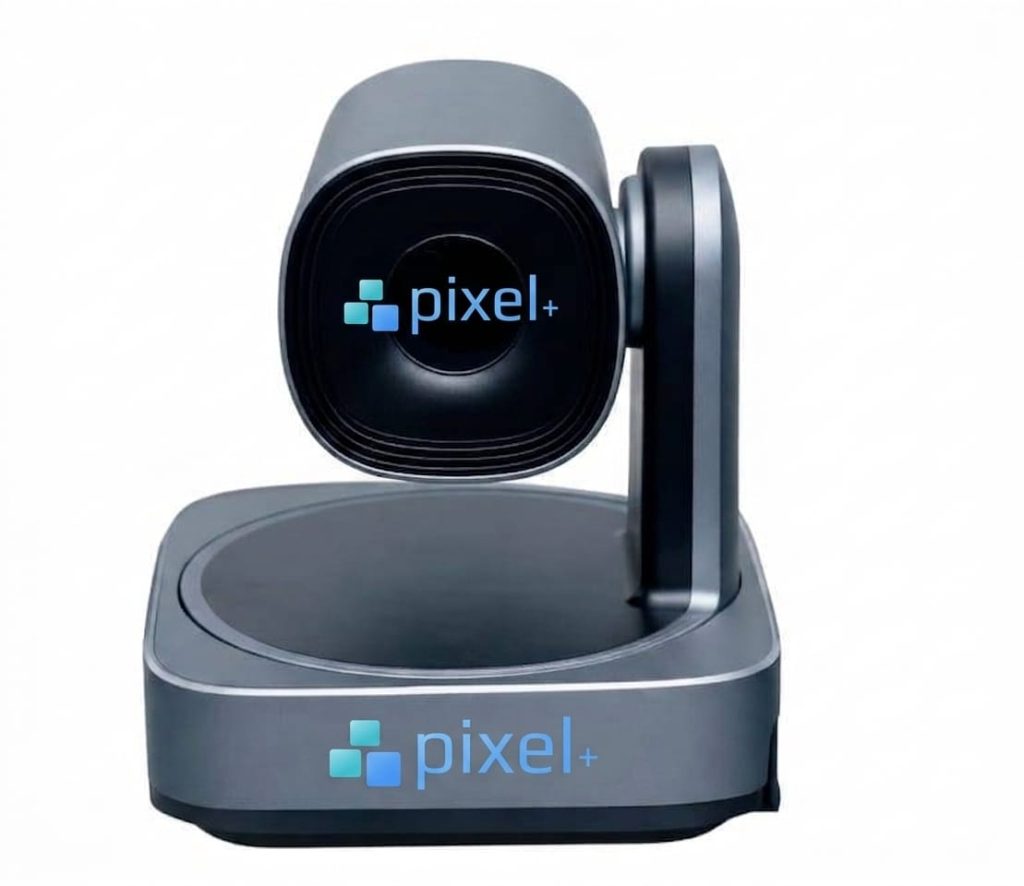

Newpixel Plus 4K CameraUSB 3.0/ HDMI PTZ Camera with 12X Zoom
Image SensorSony IMX415 1/2.8: CMOS
Effective Pixels8.29MP, 16:9
Lensf-3.9-46.8mm
ApertureF1.6 – F9.6
Optical Zoom12X Zoom
Video FormatHDMI 4k@30
Horizontal Angle70.820(W) – 6.480(T)
Vertical Angle47.720(W) – 73.660(T)
Diagonal Angle78.580(W) – 7.420(T)
PTZ Parameter
Pan / Tilt Rotation⍴1750, 900, ⍺ +900
Pan Control Speed0.1 – 800/sec
Tilt Control Speed0.1 – 600/sec
Preset Number255 presets by Pelco D Presets by Visca (10 presets by remove controller)
SNR〉50dB
FocusAuto / Manual
General Parameter
Operation SystemWindows 10, Windows 11 Android, Mac OSä 10.10 or higher
Input VoltageDC 12V
Input Current1.0A (Max.)
Power Consumption13W (Max.)
Store Temperature-100C ⍺ +600C
Store Humidity20% ⍺ +90%
Working Temperature-100C ⍺ +600C
Working Humidity20% ⍺ +80%
Dimension (W*H*D)171.6*192.6*171.6mm / 260*217*197mm
N.W. / G.W.1430g / 2096g
Accessory1xCamera: 1XUSB Cable: 1XPower Adapter: 1XWall Mount: 1X Manual
General Parameter
Video InterfacesHDMI, TYPE-C, Ethernet
LAN10M/100M Adaptive Ethernet Port
Network ProtocolRTSP, RTMP, ONVIF, GB28181
Control InterfaceRS232 (Input & Output), RS485, TYPE-C (UVC1.1)
Digital Noise Reduction2D & 3D noise Reduction
ExposureAuto / Manual
